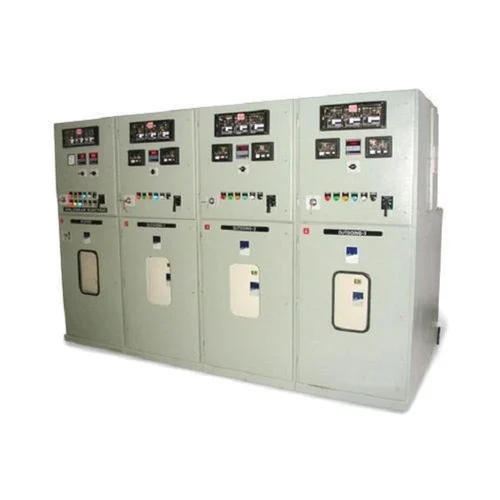

DG Set Standard Panel

DG Set Standard Panel

A DG Set Standard Panel is a factory-engineered and fully integrated control & protection panel designed to manage the operation, monitoring, and safety of a Diesel Generating Set. Built to meet CPCB IV+ norms and stringent electrical standards, the Standard Panel ensures reliable DG performance, smooth start–stop operations, and comprehensive protection for both the generator and connected loads. With robust construction, advanced control logic, and user-friendly interfaces, these panels form the core command system of any DG installation—delivering operational stability, long-term reliability, and safety compliance.

KEY FEATURES:

  • Fully Compliant with CPCB IV+ Emission & Control Requirements
  • Auto / Manual Start-Stop Operation
  • Engine Safety Protections
  • Electrical Protections
  • Emergency Stop Switch for immediate shutdown
  • Rugged Sheet Metal Enclosure with powder coating
  • Pre-Wired & Fully Tested before dispatch
  • IP Standard Protection suitable for harsh site conditions

Standard Panel Components

Microprocessor/PLC-based DG Controller
MCCB / ACB (as per DG rating)
Voltage & Current Transformers
Engine & Alternator Protection Relays
SMPS Battery Charger
Indicating Lamps and Selector Switches
Terminal Blocks & Internal Wiring
Cooling Air Vents with proper sealing

Benefits

Reliable DG Operation with accurate monitoring
Enhanced Safety through multi-level protections
User-Friendly Controls for easy site operation
Reduced Downtime with preventive diagnostics
Compliance with all CPCB IV+ regulatory norms
Long Operational Life with robust engineering
Consistent Performance in Industrial Conditions

Applications

Industrial Plants & Manufacturing Units
Hospitals & Healthcare Facilities
Commercial Buildings & IT Parks
Government & Institutional Installations
Warehouses & Cold Storage
Infrastructure & Utility Projects
