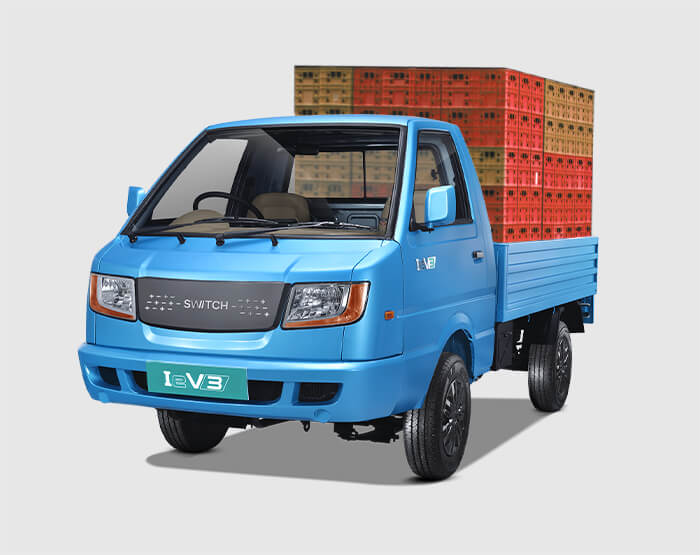

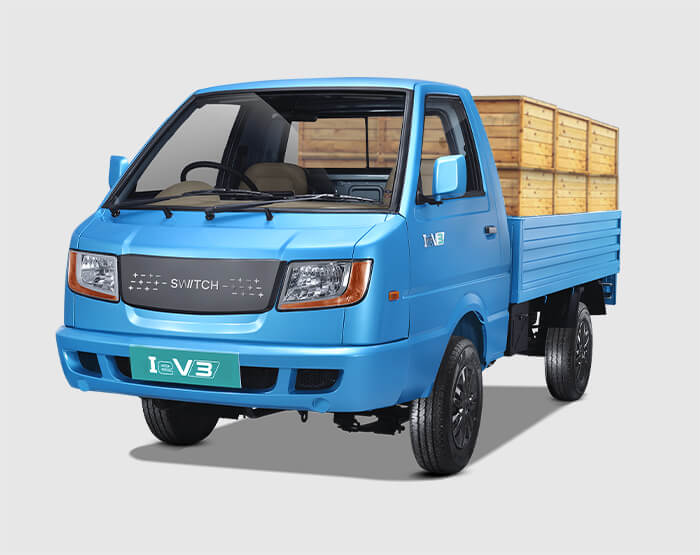

SWITCH IeV3

SWITCH IeV3: Where Sustainable Logistics Meets Profitable Solutions

The IeV3 from SWITCH Mobility redefines efficiency with a 1.25-ton payload, 140 km* range, and 256V high-voltage EV architecture for superior performance. Powered by a 40 kW motor and 25.6 kWh lithium-ion battery, it ensures lower operating costs, reliable performance, and profitable TCO. Features like regenerative braking, electric power steering and SWITCH iON telematics meet modern logistics demands.

KEY FEATURES:

  • 1.25 Ton Payload
  • 140 kms Range*
  • 25.6 KWh Lithium-ion battery
  • 256V High Voltage EV Architecture
  • 40 kW / 190 Nm torque
  • Profitable TCO

Technical Specifications

Model Details

  • GVW (kg)
  • 2590
  • Payload(kg)
  • 1250(FSD)
  • Wheelbase (mm)
  • 1250
  • Load Body Dimension-FSD (mm)
  • 2645 x 1620 x 440 (8ft 7 inch x 5ft 4 inch x 1ft 6 inch)
  • Container Suitability
  • 270 CFT Container Suitability

EV Power Train Details

  • Battery
  • 25.6 kWh Advanced Lithium-ion Battery
  • Operating Voltage (V)
  • 300V EV Architecture
  • Motor
  • Permanent Magnet Synchronous Motor (PMSM)
  • Peak Power (kW)
  • 40
  • Peak Torque (Nm)
  • 190

Performance

  • ARAI Certified Range (km)
  • 220*
  • Real World Range (km)
  • 140*
  • Max. Geared Speed (kmph)
  • 70
  • Gradeability (%)
  • 22

Charging Details

  • Charger Type
  • CCS2 (AC & DC)
  • DC Charging
  • Fast Charging 55 mins (0 to 80%)
  • AC Charger (32A)
  • 3 Hrs 45 Mins ( 0-80 % SOC)*
  • AC Charger (16A)
  • 8 Hrs 30 mins ( 0-80 % SOC)*

Others

  • Seating Capacity
  • D+1
  • Ground Clearance (mm)
  • 177
  • Steering
  • Electric Power Steering
  • Tyre - Front & Rear
  • 185 R14 LT 8PR/10 PR
  • Front Suspension
  • Rigid Suspension
  • Rear Suspension
  • Rigid Suspension
  • Brakes
  • Front - Disc | Rear - Drum
