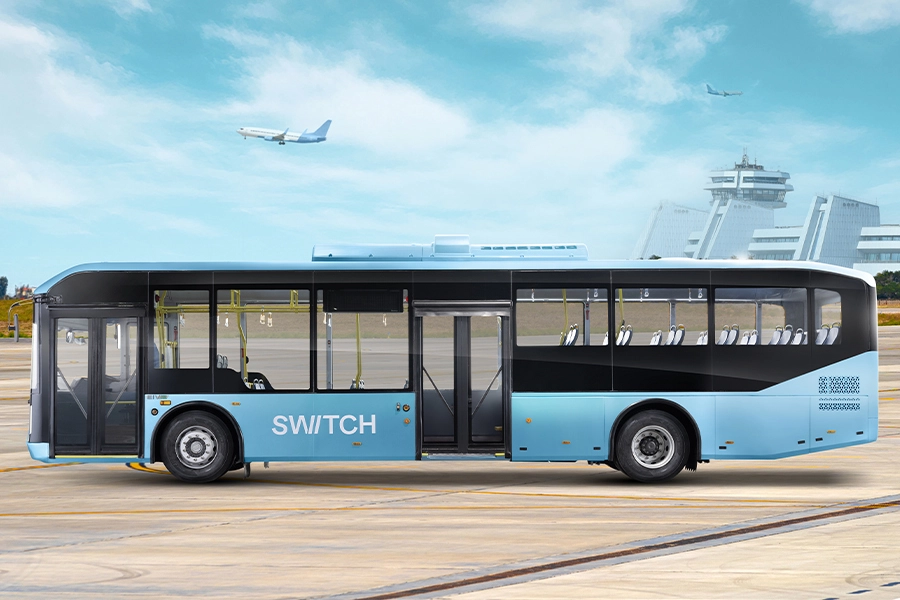

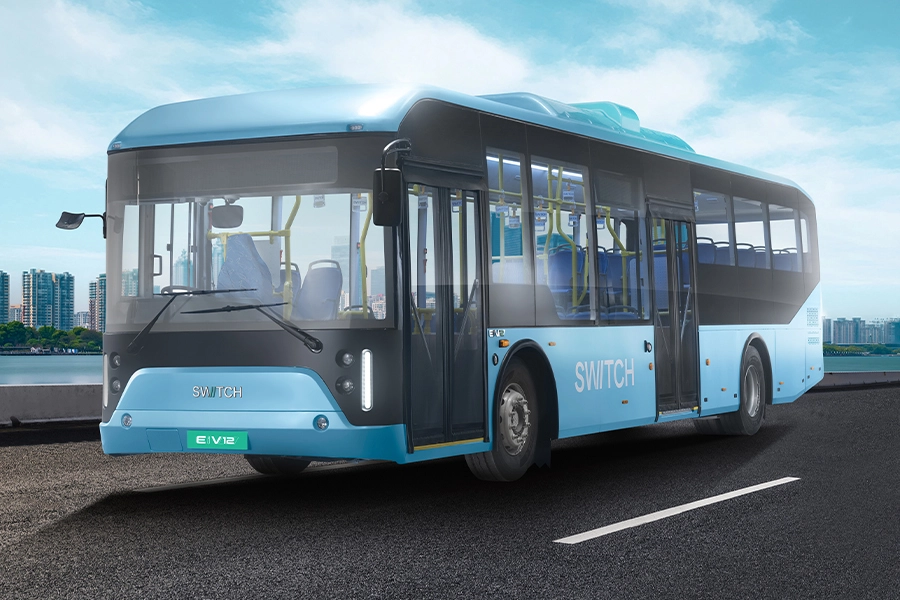

SWITCH EiV12: Where Sustainability Meets Performance

SWITCH EiV 12 is our first fully electric bus specifically designed for the Indian market. This next-generation electric bus features customer-centric offerings on technology and passenger comfort while being contemporary and futuristic

The SWITCH EiV 12 delivers exceptional drive performance and efficiency and is embedded with proprietary technology solutions including ‘SWITCH iON’ to enable remote, real-time diagnostics and monitoring, as well as world-class digital EV battery management tools

KEY FEATURES:

  • City, Staff & School
  • Scalable Batteries
  • Streamline Bus Design
  • Dual Gun Fast Charging
  • Connected, Charging & Safety
  • Large Window Glass Area
  • Multiple Seat Options
  • Lower Seating Height

Technical Specifications

  • Product
  • EiV12 - Intercity
  • Application
  • Intercity
  • Length (mm)
  • 12000
  • Width (mm)
  • 2600
  • Height (mm)
  • 3475
  • Wheelbase (mm)
  • 6400
  • Floor Height (mm)
  • 1050
  • Seating Capacity
  • 45+D (Pushback Seats)
  • Tyres
  • 295/80 R22.5
  • Max Speed (km/h)
  • 80
  • Motor
  • Permanent Magnet Synchronous ,
    AC Motor Max Power: 235 kW,
    Continuous Power: 140 kW
  • Battery
  • LFP Battery 423 kWh
  • Range per Charge
  • >300 km
  • Charging System
  • DC Fast Charging, CCS-2
  • Charging Time
  • 2 to 3 Hours
  • Suspension
  • Front & Rear Air Suspension
  • Brakes
  • Disc at Front; Drum at Rear

  • Product
  • EiV12 - Low Floor
  • Application
  • Intercity / Tarmac / Staff
  • Length (mm)
  • 12000
  • Width (mm)
  • 2550
  • Height (mm)
  • 3500
  • Wheelbase (mm)
  • 6320
  • Floor Height (mm)
  • 400
  • Seating Capacity
  • 39+D+Wheelchair
  • Tyres
  • 295/80 R22.5
  • Motor
  • Permanent Magnet Synchronous
    AC Motor, Max Power: 235 kW,
    Continuous Power: 140 kW
  • Battery Technology
  • Advanced Li-ion chemistry
  • Suspension
  • Front & Rear Air Suspension
    with Kneeling Mechanism
  • Charging System
  • DC Fast Charging, CCS-2
  • Charging Time
  • <2 Hours
  • Suspension
  • Front & Rear Air Suspension
    with Kneeling Mechanism
  • Range per charge*
  • 314 km
  • Charging System
  • DC Fast Charging, CCS-2
  • Brakes
  • Disc at Front; Drum at Rear

  • Product
  • EiV12 - Staff
  • Application
  • Staff
  • Length (mm)
  • 12000
  • Width (mm)
  • 2600
  • Height (mm)
  • 3475
  • Wheelbase (mm)
  • 6400
  • Floor Height (mm)
  • 900
  • Seating Capacity
  • 50+D HHR seat / 45+D Pushback seat
  • Tyres
  • 295/80 R22.5
  • Max Speed (km/h)
  • 80
  • Motor
  • Permanent Magnet Synchronous
    AC Motor, Max Power: 235 kW,
    Continuous Power: 140 kW
  • Battery
  • LFP Battery 184 kWh / 283 kWh
  • Suspension
  • Front & Rear Air Suspension
  • Charging System
  • DC Fast Charging, CCS-2
  • Charging Time
  • 1.5 to 2 Hours
  • Range per charge*
  • >130 km / >200 km
  • Brakes
  • Disc at Front; Drum at Rear

  • Product
  • EiV12 - Tarmac
  • Application
  • Tarmac
  • Length (mm)
  • 12000
  • Width (mm)
  • 2550
  • Height (mm)
  • 3500
  • Wheelbase (mm)
  • 6320
  • Floor Height (mm)
  • 363 (Entry)
  • Seating Capacity
  • 25/21+D+Wheelchair+20 Standing
  • Tyres
  • 275/70R 22.5-16PR
  • Max Speed (km/h)
  • 75
  • Motor
  • Permanent Magnet Synchronous
    AC Motor, Max Power: 235 kW,
    Continuous Power: 140 kW
  • Battery Technology
  • LFP Battery 283 kWh
  • Suspension
  • Front & Rear Air Suspension
  • Charging System
  • DC Fast Charging, CCS-2
  • Charging Time
  • ~2 Hours
  • Brakes
  • Disc at Front; Drum at Rear

  • Product
  • EiV12 - Standard
  • Application
  • Intracity / Intercity / Staff / School
  • Length (mm)
  • 12000
  • Width (mm)
  • 2600
  • Height (mm)
  • 3350
  • Wheelbase (mm)
  • 6200
  • Floor Height (mm)
  • 900
  • Motor
  • Permanent Magnet Synchronous
    AC Motor, Max Power: 235 kW Peak
    Continuous, 3100 Nm Peak
  • Battery Technology
  • Advanced Lithium-Ion NMC chemistry
    with Modular battery options
  • Charging Time
  • 1.5 – 3 Hours
  • Brakes
  • Disc at Front; Drum at Rear
  • Door Locations
  • FOH / WB / ROH / BRT

  • Product
  • EiV12 - Ultra Low Entry
  • Application
  • Intracity / Tarmac / Staff
  • Overall Length (mm)
  • 12000
  • OverallWidth (mm)
  • 2600
  • Overall Height (mm)
  • 3180
  • Wheelbase (mm)
  • 6320
  • Floor Height (mm)
  • 400
  • Motor
  • Permanent Magnet Synchronous
    AC Motor, 235 kW Peak
    , 140 KW Continuous, 3100 Nm Peak
  • Suspension
  • Full Air Suspension
  • Range
  • Upto 300 Kms with single charge
    and upto 500 kms/day with
    dual gun fast charging
  • Capacity
  • 35 + D + WC (Customizable)
  • Battery Technology
  • Advanced Lithium-Ion NMC chemistry
    with Modular battery options
  • Charging Time
  • 1.5 – 3 Hours
  • Brakes
  • Disc Brakes at Front & Rear
  • Door Locations
  • FOH / WB
